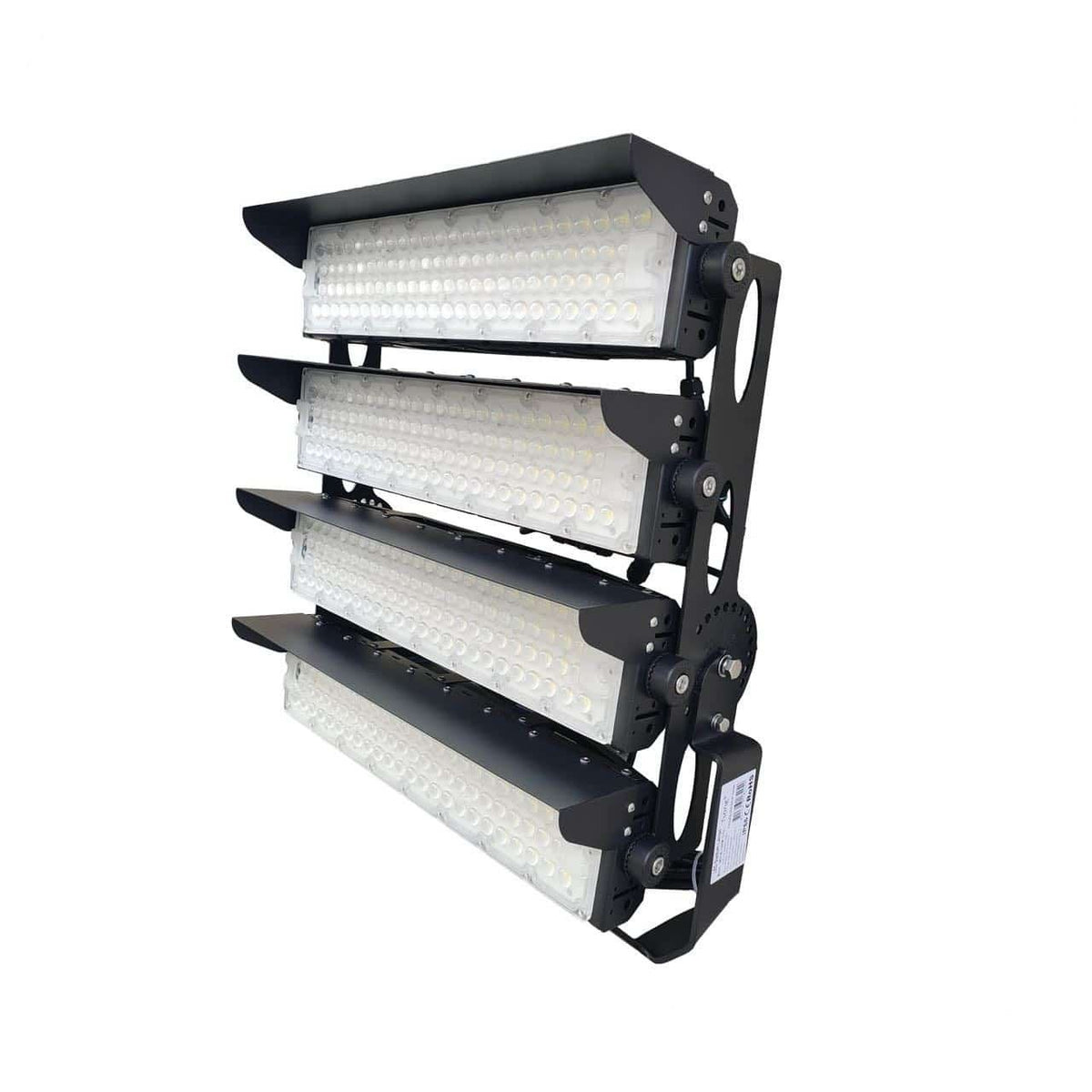

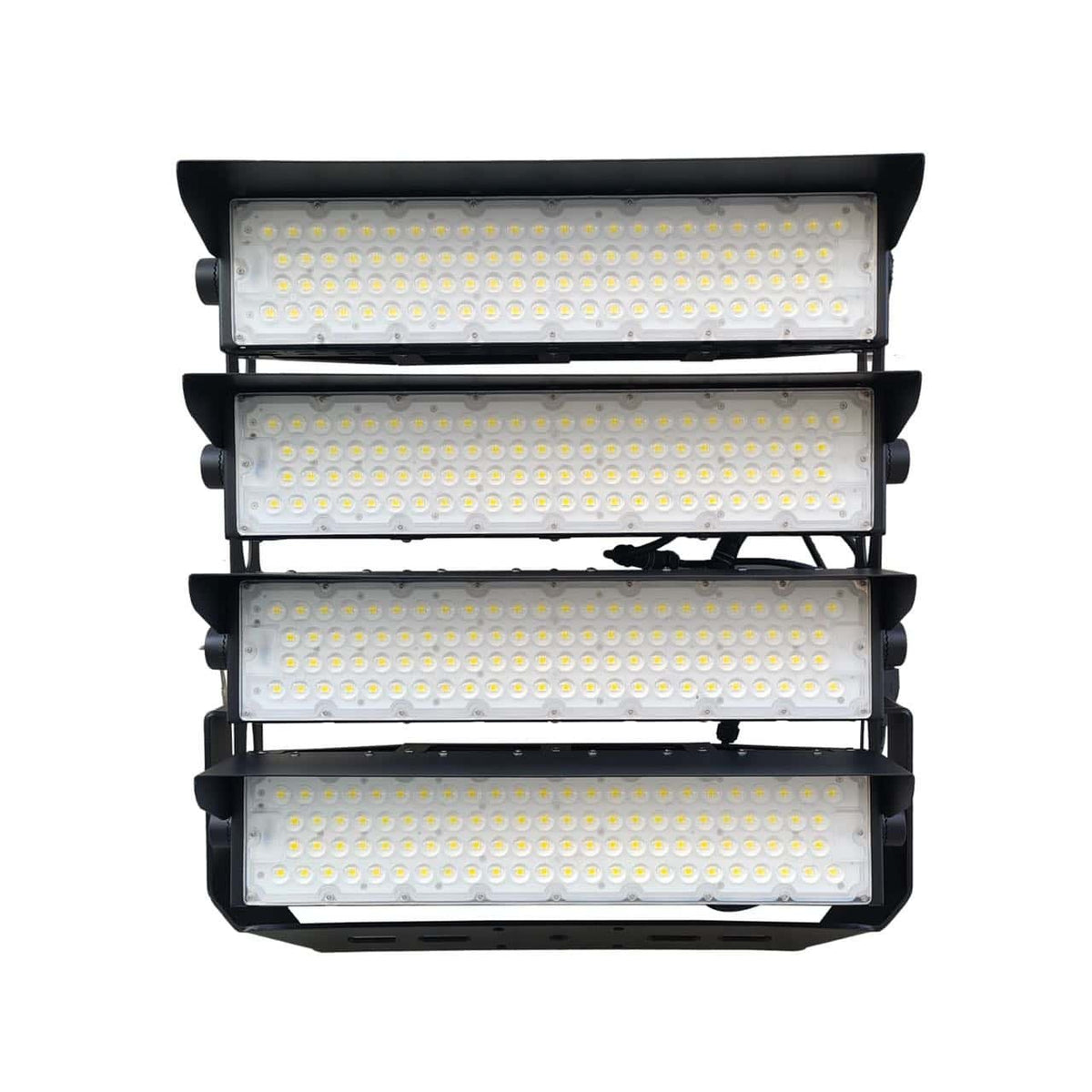

LED Sports Field Light 1000W 20° – Pro Stadium & TV Matches – 5000K – Philips Driver

Why choose the LED Sports Field Light 1000W

Designed for high-mast and pole-mounted applications where precision matters, this 1000W fitting concentrates 170,000 lm into a tight 20° beam to achieve the high vertical and horizontal lux levels demanded by sports federations and broadcast cameras. The Philips driver and die-cast aluminium housing ensure consistent performance across thousands of operating hours without the warm-up delays of metal halide.

• Efficiency: At 170 lm/W, this fitting consumes 1000W where a comparable metal halide installation required 5000W, cutting energy costs by up to 80% on the same pitch.
• Light quality: The 5000K daylight colour temperature renders player movement and ball trajectory with the clarity that broadcast cameras and referees require at professional level.
• Build: The die-cast aluminium body with IP66 sealing withstands driving rain, dust, and coastal conditions, keeping maintenance crews off the mast for years at a time.
• Driver and warranty: The integrated Philips driver supports 1-10V dimming and carries a 5-year warranty, giving clubs and facility managers a clear, low-risk investment horizon.

Where to use it

This fitting is sized for full-size football pitches, athletics stadiums, and large multi-sport arenas where mast heights typically range from 18 to 30 metres. It is equally suited to indoor velodromes, large basketball arenas, and padel or tennis complexes with high rooflines. The 20° beam keeps spill light off neighbouring properties and concentrates lux precisely on the playing surface, supporting UEFA, FIFA, and national federation lighting standards for competitive and televised matches.

What the specifications mean in practice

• 170 lm/W: Every watt of electricity produces 170 lumens of useful light, so running costs are a fraction of the metal halide installations this fitting replaces.
• 20° beam angle: The narrow beam is designed for mast heights of 18 m and above, concentrating light on the pitch without wasting lumens on stands or surrounding areas.
• 5000K: Daylight-white light renders colours accurately under camera conditions and reduces eye strain for players and spectators during evening fixtures.
• IP66: Fully sealed against dust ingress and powerful water jets, meaning the fitting can be installed on exposed outdoor masts in any European climate without additional protection.
• 50,000 hours: At four hours of use per evening, this equates to roughly 34 years of operation before the light source reaches end of rated life, dramatically reducing replacement and access costs.

Installation and compatibility

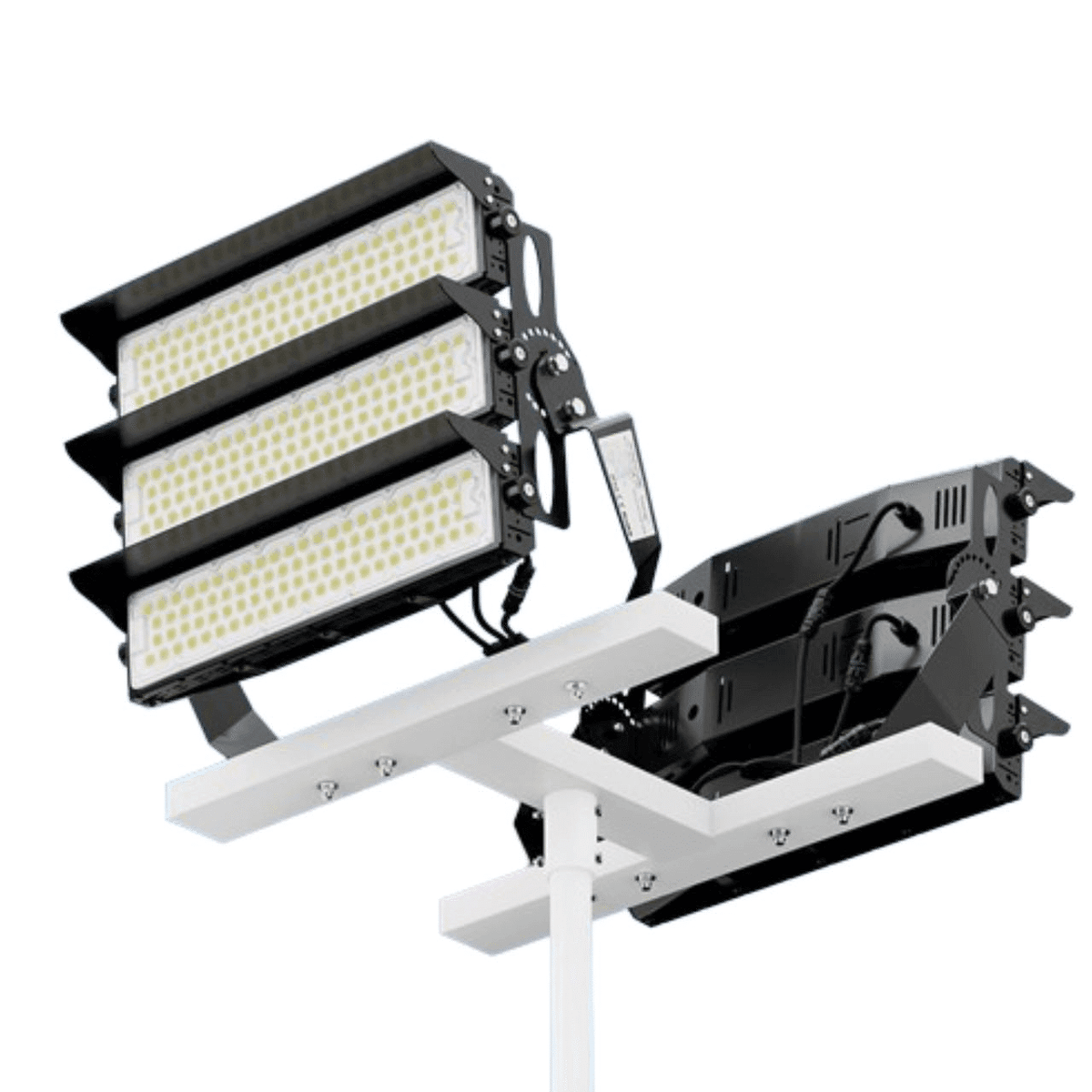

The fitting mounts to standard sports mast yoke brackets and connects to a 200-240V AC supply. The Philips driver accepts a 1-10V control signal for dimming, allowing training sessions to run at reduced output. Clightstore provides a free DIALux light study on request, confirming pole spacing, aiming angles, and lux uniformity before you order.
