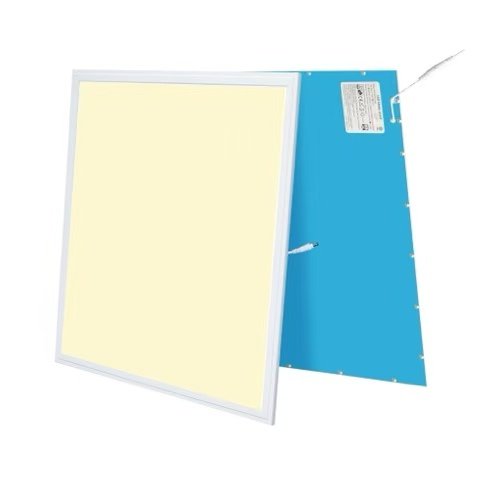

LED Panel 62×62 with UGR<19 – 40W – 3000K – 120 lm/W – Edgelit – Driver Included (Replaces 4x18W) – 5-Year Warranty

Why choose the LED Panel 62×62

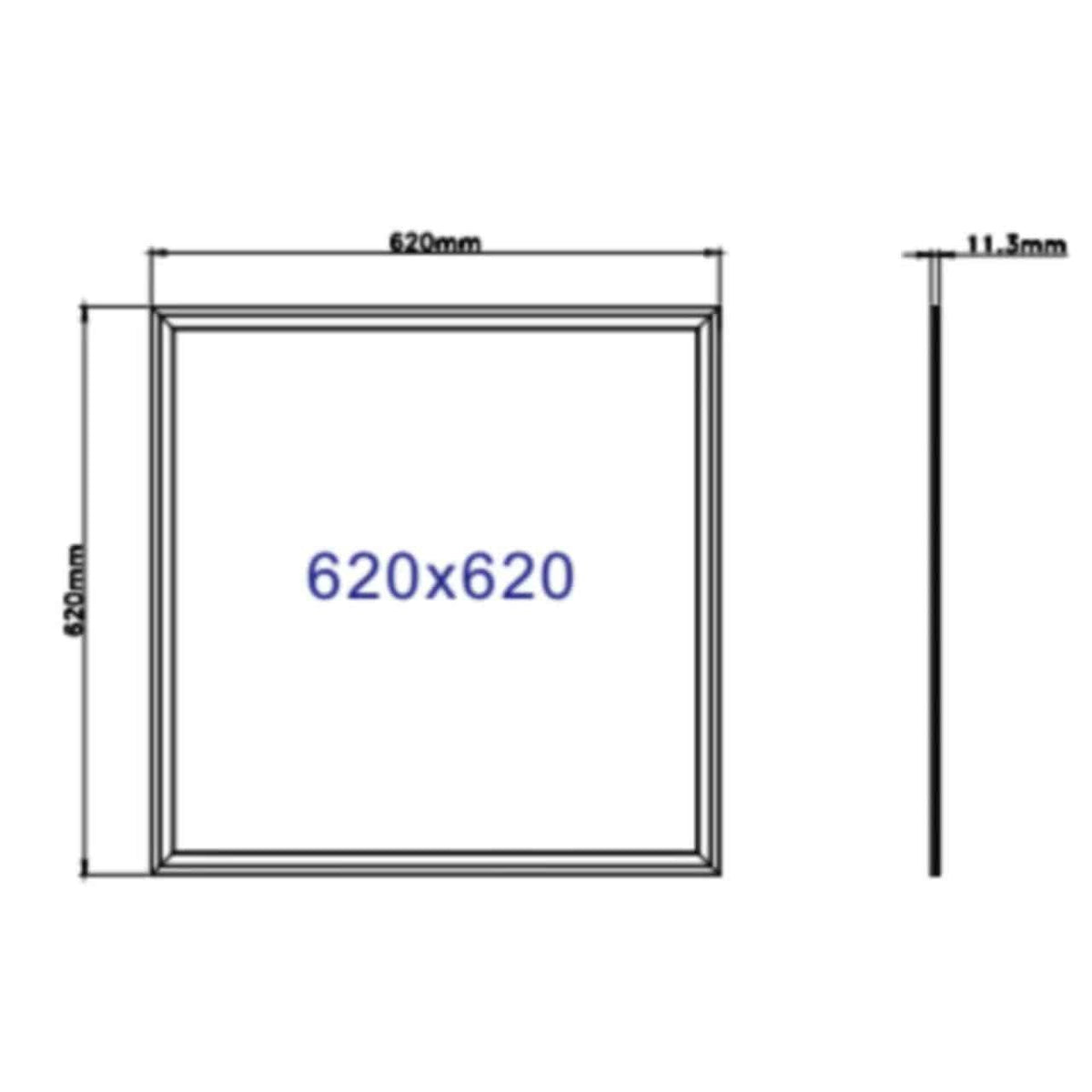

At just 11 mm deep, this edgelit panel fits neatly into standard 62×62 grid ceilings and cuts energy consumption by 50% compared to the fluorescent fittings it replaces. The Lifud driver ensures stable, flicker-free output from day one, and the five-year warranty means you are covered long after installation. Six driver variants make it compatible with virtually every control system in use today.

• Efficiency: 120 lm/W efficacy produces 4,480 lm from only 36W, halving the running cost of a 72W fluorescent equivalent.
• Glare control: A certified UGR<19 rating keeps glare below the threshold required for screen-based workplaces under EN 12464-1.
• Build quality: The aluminium body dissipates heat effectively, supporting a rated lifespan of 50,000 hours with no lamp replacements needed.
• Driver flexibility: Choose from standard on/off, TRIAC, 0-10V, DALI, Philips driver, or an emergency lighting module — all included at point of order.

Where to use it

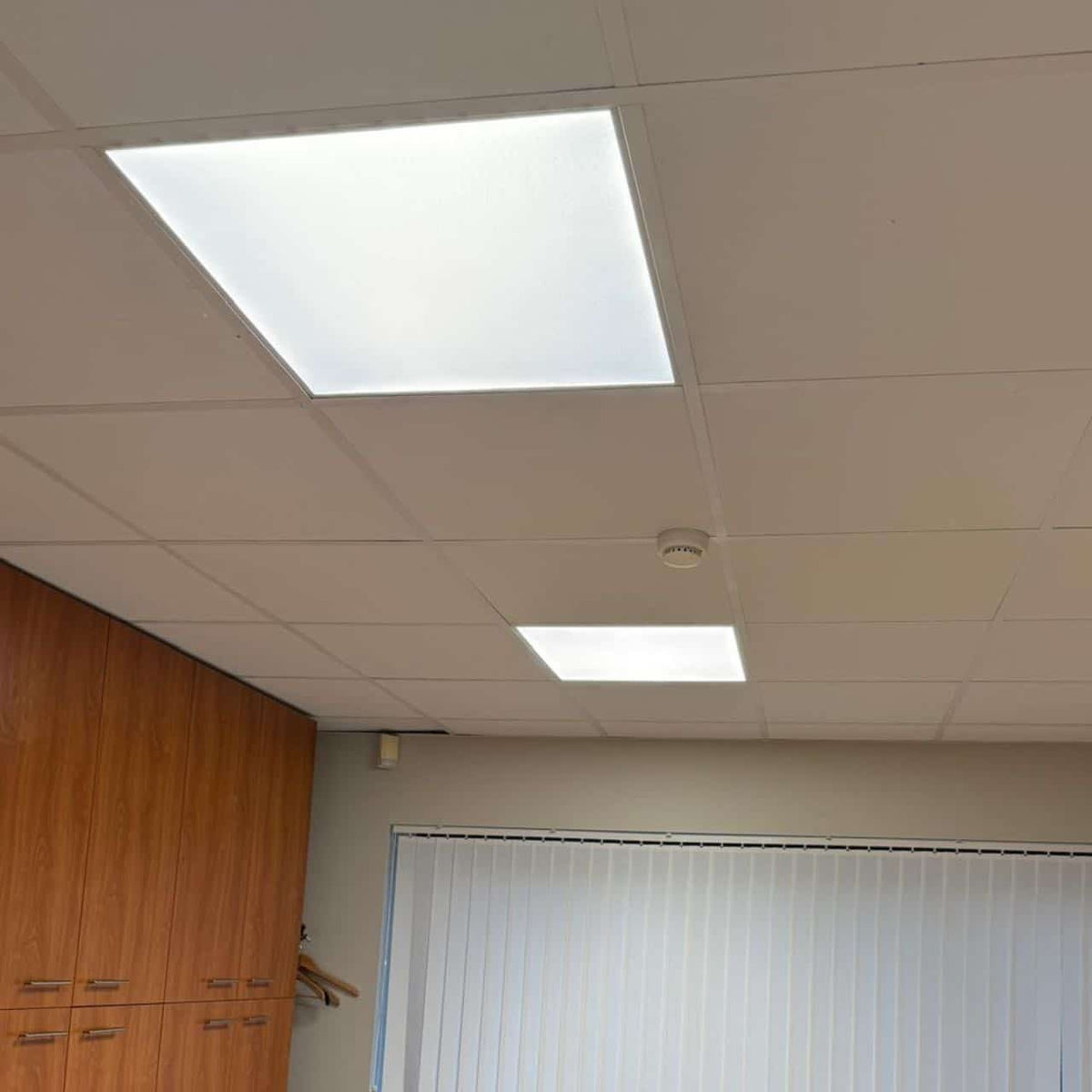

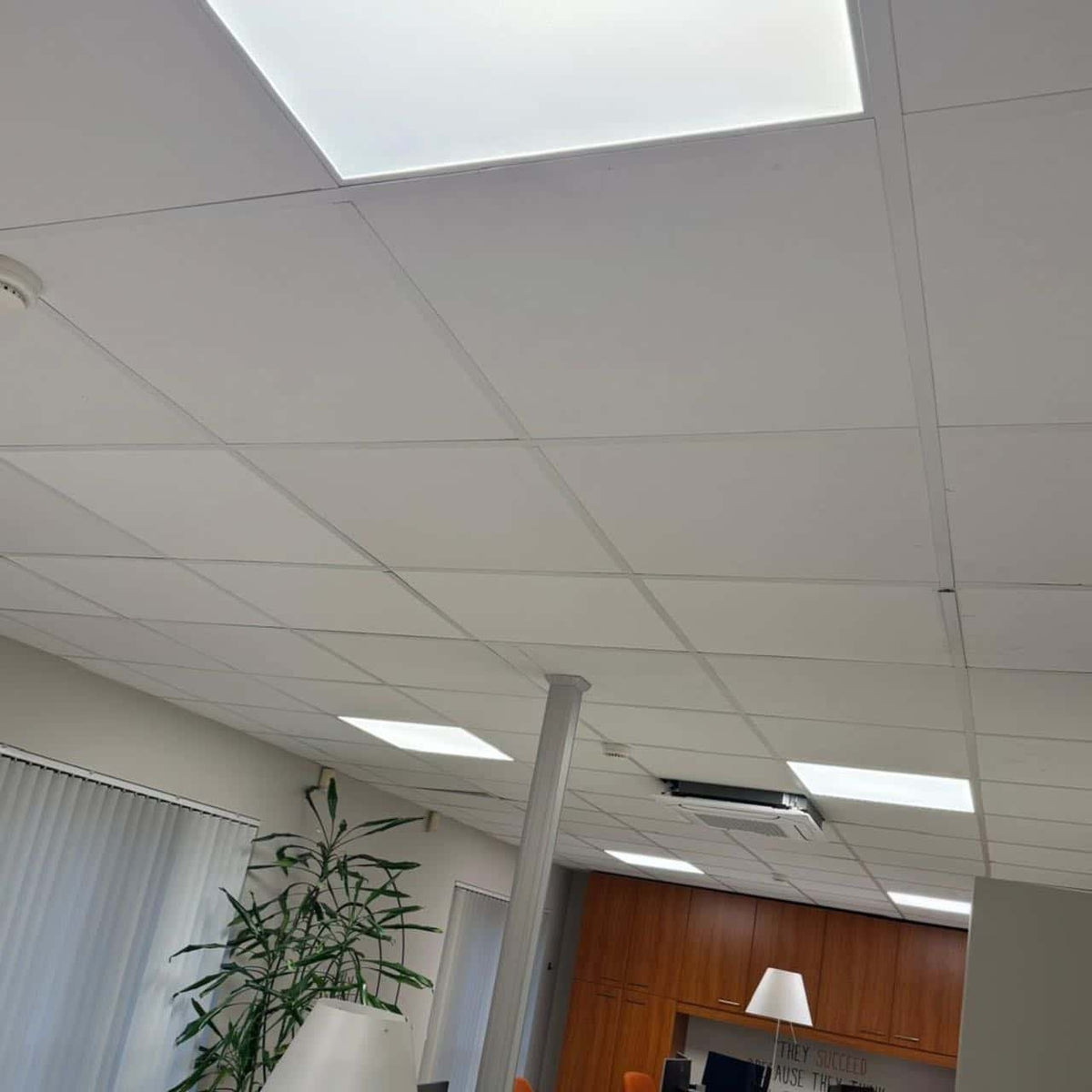

This panel is the standard choice for suspended grid ceilings in open-plan offices, meeting rooms, classrooms, healthcare waiting areas, and retail back-of-house spaces. At a typical mounting height of 2.7–3.5 metres, one panel per grid module delivers 300–500 lux on the working plane — the range recommended for office and educational tasks. It can also be surface-mounted with an optional frame.

What the specifications mean in practice

• 120 lm/W: Every watt produces 120 lumens, so annual energy costs are roughly half those of the fluorescent installation being replaced.
• UGR<19: Glare is controlled to the level required for computer workstations and reading tasks, reducing eye strain over long working days.
• 3000K: A warm white tone that suits hospitality, reception areas, and any space where a relaxed rather than clinical atmosphere is preferred.
• IP41: Protected against solid objects larger than 1 mm and dripping water falling vertically — suitable for indoor ceilings but not wet or outdoor locations.
• 50,000 hours: Running eight hours a day, the panel lasts over 17 years before reaching end of rated life, keeping maintenance costs minimal.

Installation and compatibility

The panel drops directly into a standard 62×62 T-bar grid ceiling with no additional hardware. Surface mounting requires the optional surface-mount frame. The Lifud driver is pre-wired and connects to 200–240V AC. Dimming variant must be selected at order; DALI and 0-10V options integrate with BMS and occupancy sensors. Clightstore provides a free DIALux light study on request.
