Linear LED High Bay 200W 4000K Neutral White – IP65 0-10V Dimmable – 150 lm/W – Sosen Driver – For Industrial Halls & Warehouse – 5-Year Warranty

Why choose the Linear LED High Bay 200W

Where a 400W metal halide fitting once consumed energy and demanded frequent relamping, this 200W linear high bay cuts consumption in half while delivering consistent, flicker-free light across wide floor areas. The Sosen driver is a proven industrial-grade component, the aluminium housing handles dust and water ingress at IP65, and the 0-10V dimming input means the fitting integrates cleanly into building management or occupancy-sensor systems.

• Efficiency: At 150 lm/W, a single fitting produces 30,000 lumens for 200W — roughly half the energy draw of the metal halide or T5 fluorescent luminaires it replaces.
• Light quality: A 90° beam angle distributes light evenly across the floor below, reducing dark spots between rows without requiring additional fittings.
• Build: The IP65-rated aluminium housing keeps dust and low-pressure water jets out, making it suitable for dusty production environments, cold stores, and wash-down areas.
• Driver and warranty: The Sosen driver is rated for industrial duty cycles and is backed by Clightstore's 5-year warranty, covering both driver and housing.

Where to use it

This 200W linear high bay is well suited to mounting heights of 6–12 metres in warehouses, logistics centres, manufacturing halls, and large workshops. At 8 metres, a row spacing of roughly 5–6 metres typically achieves 300–500 lux on the working plane — adequate for general picking, assembly, and circulation. It also works well in sports halls, indoor car parks, and large retail storage areas.

What the specifications mean in practice

• 150 lm/W: Every watt produces 150 lumens, so annual energy costs are roughly half those of a comparable metal halide installation at the same light level.
• IP65: The fitting is fully dust-tight and protected against water jets, allowing installation in dusty production lines, cold-store entries, and areas subject to periodic cleaning.
• 90° beam angle: Light is concentrated in a controlled cone directly below the fitting, making it efficient at heights of 6–12 metres without excessive spill to walls.
• 4000K: Neutral white light renders colours accurately and keeps workers alert — the standard choice for warehouses, workshops, and logistics environments.
• 0-10V dimmable: Output can be reduced smoothly from 100% down to around 10%, enabling integration with daylight sensors, occupancy controls, or a building management system to save additional energy.

Installation and compatibility

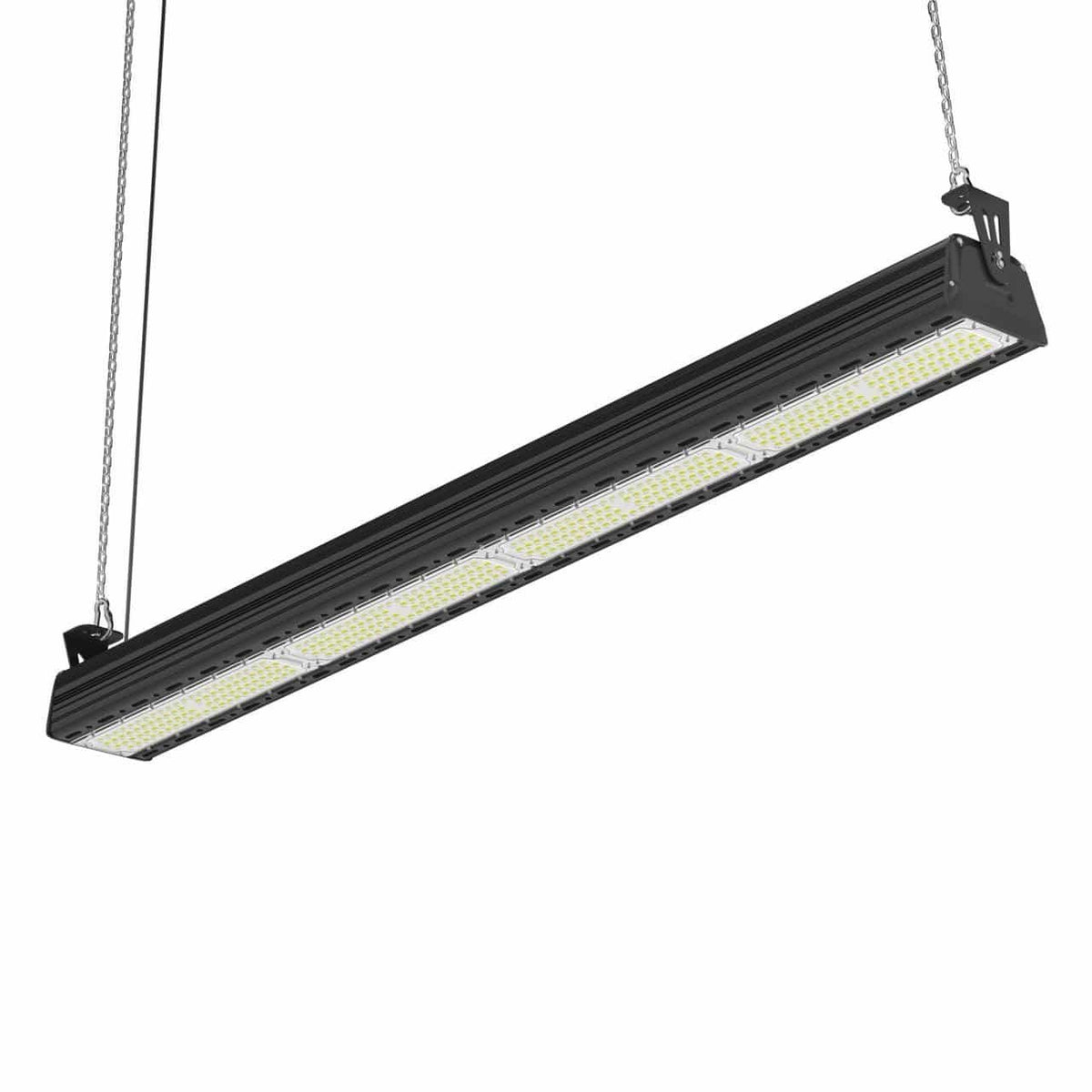

The linear high bay mounts via a suspension cable or hook to a ceiling or purlin. Mains connection is made directly to the integrated Sosen driver; the 0-10V dimming signal requires a two-core control cable from your dimming controller or sensor. Clightstore provides a free DIALux light study on request to confirm fitting count and spacing before you order.
